CCTV Camera Installation in Mahalakshmi Layout

Mahalakshmi Layout packs its houses into a compact footprint of under 1.5 square kilometres between Rajajinagar, Basaveshwara Nagar, and the Yeshwanthpur rail and market belt, and that compactness is the first thing we plan around. Plots and street spacing sit closer together here than in the larger CITB layouts nearby, which makes neighbour-privacy compliance a sharper concern than usual. The layout is also dense with schools — BGS World School and Orchids International among them — giving houses on school-adjacent streets a very predictable daily traffic pattern, and its Yeshwanthpur-facing boundary sees occasional power fluctuation tied to the industrial and rail activity next door. This page covers compact-plot camera placement, school-hour tuning, boundary power protection, and real costs for Mahalakshmi Layout.

Illustrative diagram, not to scale: on a compact plot a privacy mask keeps the neighbour's window out of the recording.

Privacy-Safe Placement on Compact Plots

Mahalakshmi Layout's plots sit closer together than the more spacious CITB-era layouts around it, and that gap between houses is the single biggest factor in how we angle a camera here. A wide-angle lens that comfortably covers a driveway on a larger plot elsewhere can, on a tighter Mahalakshmi Layout boundary, also catch a slice of the neighbour's window, balcony, or side yard — which is both a compliance problem and, in a close-knit layout where neighbours know each other, a genuine source of friction.

Field-of-view checked against actual boundary distance, not a standard placement chart. We measure the real gap to the neighbouring house during the site survey and narrow the lens angle accordingly.
Compact dome cameras preferred over large bullet housings on boundary-facing walls, since a smaller, less obtrusive housing draws less attention from a neighbour standing a few metres away.
Physical shielding where needed. A small angled hood or side shield on a camera keeps its field of view locked to the gate or driveway even if the mounting position is close to the boundary line.

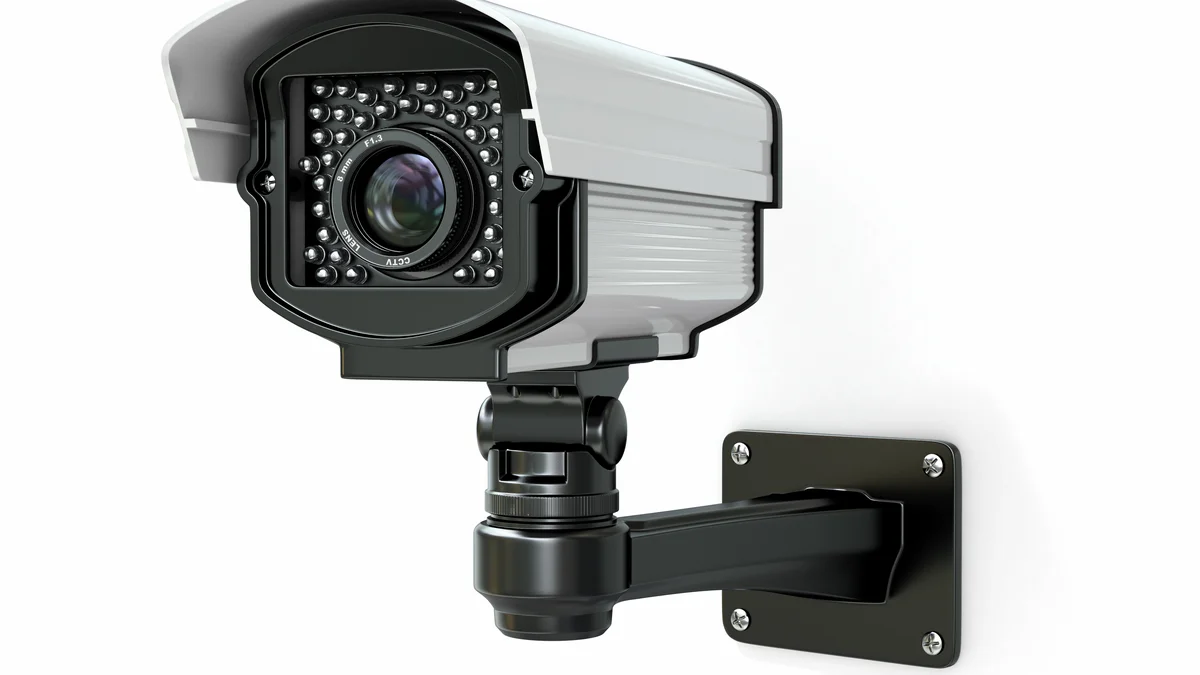

Tuning for School-Hour Traffic

Mahalakshmi Layout has an unusually high density of schools for its size, including BGS World School and Orchids International School, and houses on the streets those schools sit on see a sharp, predictable spike in vehicle and foot traffic twice a day. A motion-triggered camera left at default sensitivity records the same buses, autos, and parent cars at the same two windows every single school day, which fills the motion log with routine noise and buries anything actually worth reviewing.

We set a scheduled sensitivity reduction across known drop-off and pickup windows — the camera keeps recording continuously through those hours, but stops treating the routine daily pattern as a motion event worth flagging separately, so the alert log stays useful the rest of the day.

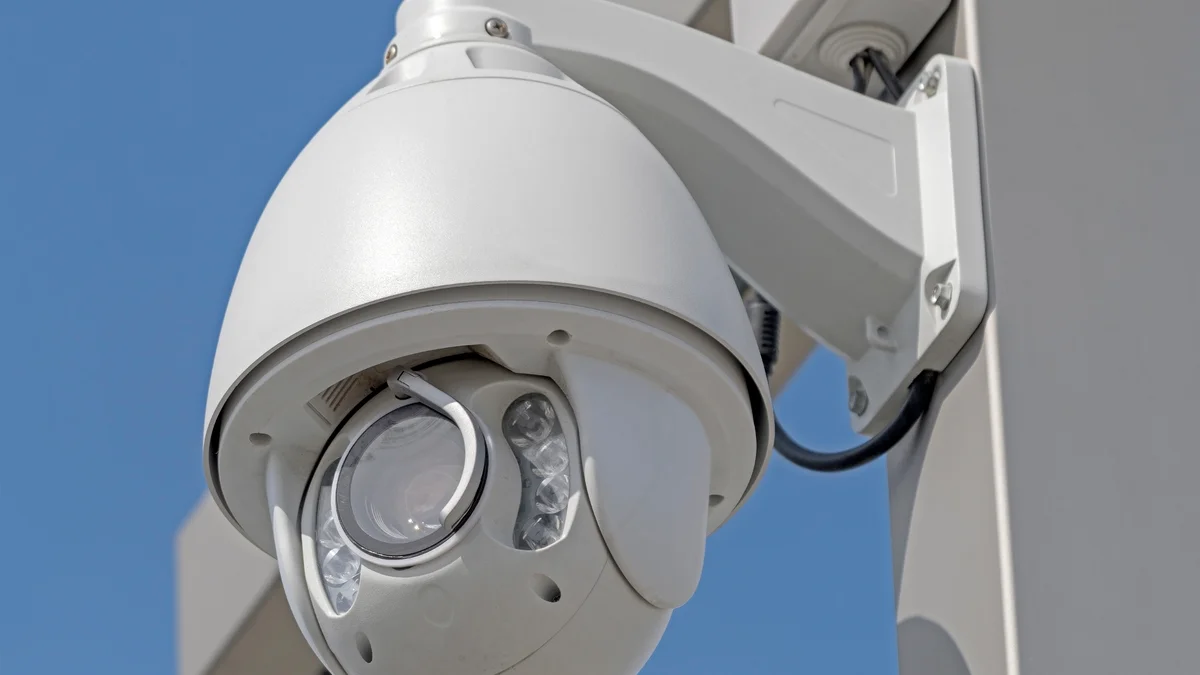

Power Protection on the Yeshwanthpur Boundary

Mahalakshmi Layout's edge toward Yeshwanthpur sits close to a significant rail yard, wholesale market, and industrial presence, and houses on that side of the layout occasionally see sharper voltage fluctuation than the layout's interior streets — a pattern consistent with the heavier electrical load nearby. A single surge event on an unprotected line can take out an NVR and every camera connected to it in one shot, which is a costlier failure than a dropped recording.

For Yeshwanthpur-boundary properties, we add a dedicated surge protector on the camera and NVR power line in addition to the UPS we recommend for every installation, giving two layers of protection against exactly this kind of fluctuation rather than relying on the UPS alone to absorb it.

How Much Does CCTV Cost in Mahalakshmi Layout?

House Type	Cameras	What's Added	Cost Range
Standard compact-plot house	4 – 6	Boundary-checked placement	Rs 26,000 – 42,000
School-adjacent house	4 – 6	Scheduled sensitivity tuning	Rs 32,000 – 50,000
Yeshwanthpur-boundary house	4 – 6	Surge protector + UPS	Rs 38,000 – 60,000
Redeveloped / larger house (G+2)	8 – 10	Fuller camera count	Rs 55,000 – 90,000

See our main CCTV camera installation page for camera types, storage options, and BIS safety standards that apply across all our Bangalore projects.

Camera Types for Compact Mahalakshmi Layout Homes

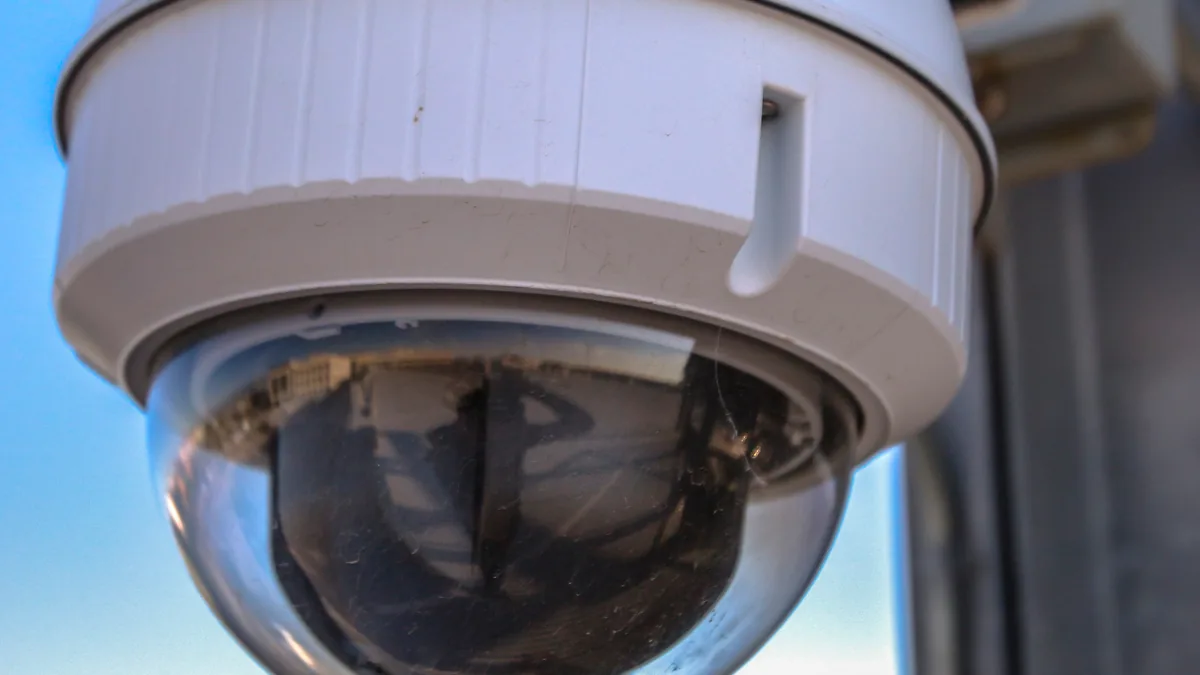

Compact Dome Cameras

On boundary-facing walls where the neighbouring house sits just a few metres away, a compact dome camera is our first choice. Its low-profile housing blends against an exterior wall far better than a protruding bullet camera, and it looks less intimidating to a neighbour who sees it every time they step outside. A dome also resists casual tampering better than a bullet, since the lens direction is less obvious from below.

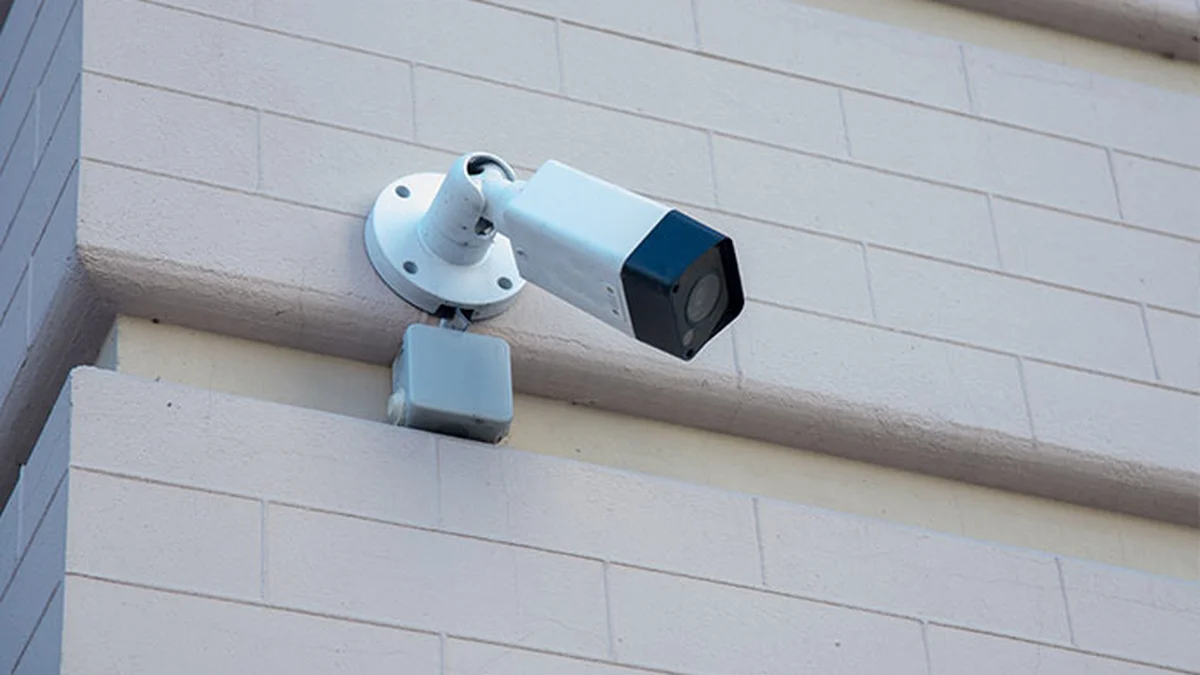

Bullet Cameras with Narrow Angle

Bullet cameras still have a place in Mahalakshmi Layout, but only where their directional housing is an advantage — aimed straight down a gate entrance or along a driveway. We specify a narrower lens angle than would be standard on a larger plot so the field of view stays within the homeowner's own compound rather than sweeping across a neighbour's side yard or parking area.

Video Doorbells

Many Mahalakshmi Layout households are dual-income families with children attending one of the layout's several schools. A video doorbell lets a parent at work verify who is at the door when a child arrives home from school, and the two-way audio allows real-time communication without the child needing to open the door for a stranger. It pairs naturally with the main gate camera without adding wiring complexity.

Wireless WiFi Cameras

For rear gardens, detached sit-outs, or upper-floor vantage points where running a conduit is impractical, a wireless WiFi camera avoids the need to route cable through a tight compound. This option is also well suited to tenants on upper floors of a G+2 house who want their own independent camera without modifying the building's permanent wiring. WiFi range in compact Mahalakshmi Layout plots is generally adequate since the distances involved are short.

Retrofit Wiring on Compact Plots

Mahalakshmi Layout's tight plot spacing means shorter cable runs overall — a benefit in terms of material cost — but tighter physical spaces to work in. Cable routes pass close to boundary walls that a neighbour can see from their own property, so visible surface casing must be colour-matched to the wall and run neatly; a sloppy installation is far more conspicuous here than it would be on a larger, more secluded compound.

We prioritise routing cable through existing electrical conduit wherever possible, eliminating visible casing entirely. Where new surface casing is unavoidable, we use slim-profile trunking finished to match the exterior wall colour. For NVR placement in compact homes, a wall-mounted lockable cabinet in the utility area or service corridor is the standard approach. We avoid placing the NVR in an under-stair cupboard unless it has adequate ventilation — a sealed cupboard traps heat and shortens hard-disk life significantly in Bangalore's climate.

PoE (Power over Ethernet) is the preferred wiring method for these installations. A single CAT6 cable carries both video and power to each camera, cutting the total number of cable runs in half compared to a traditional coaxial-plus-power setup. In a compact compound where every centimetre of conduit space counts, that reduction matters.

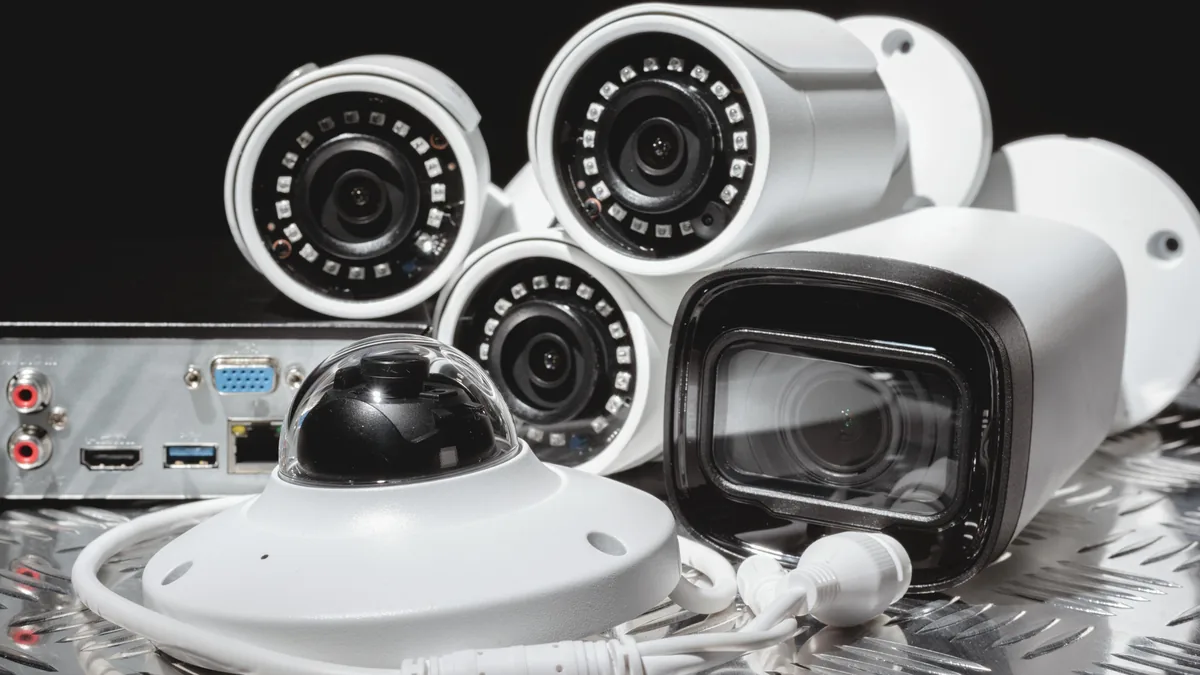

Storage and NVR Sizing

For a standard compact Mahalakshmi Layout house running 4 to 6 cameras at 4MP resolution, a 1 to 2 TB hard disk inside the NVR provides 20 to 35 days of recording retention — comfortably above the 15-day minimum most homeowners want. A larger redeveloped G+2 property running 8 to 10 cameras needs a 4 TB hard disk at minimum to maintain 20 to 30 days of usable footage.

Houses near schools that use continuous recording during school hours rather than motion-only detection should factor in higher storage consumption during those windows — roughly 15 GB per day per 4MP camera at continuous recording. We recommend an 8-channel NVR even for homes currently running only 4 to 6 cameras, since it leaves room to add a camera or two later without replacing the recorder. The cost difference between a 4-channel and 8-channel NVR is modest compared to the cost of swapping the entire unit in a year or two.

Mahalakshmi Layout CCTV Mistakes to Avoid

1. Wide-angle camera catching the neighbour's balcony. On compact Mahalakshmi Layout plots, the gap between houses is often under four metres. A camera set to a standard wide angle that would be perfectly fine on a larger property ends up capturing a neighbour's balcony, window, or entrance area. We measure the actual boundary distance during the site survey and specify a lens angle narrow enough to stay within the homeowner's own compound, adding a physical side shield where the geometry leaves no margin.

2. No surge protection on Yeshwanthpur-boundary houses. Houses along the layout's western edge, close to the Yeshwanthpur rail yard and industrial area, are exposed to sharper voltage spikes than interior streets. A single industrial-linked surge can destroy the NVR and every connected camera in one event. We specify a dedicated surge protector on the camera power line for every installation on that boundary — it costs a fraction of the equipment it protects.

3. Motion alerts overwhelmed by school-hour traffic. A camera on a school-adjacent street left at default motion sensitivity generates hundreds of alerts every school day from the same routine bus, auto, and parent-car traffic. The alert log becomes useless because genuine events are buried under routine noise. Scheduled sensitivity tuning during known drop-off and pickup windows solves this without disabling motion detection entirely.

4. NVR placed in a sealed cupboard with no airflow. A common shortcut in compact homes is to tuck the NVR into a closed cupboard under the staircase or inside a wardrobe. Without ventilation, the hard disk runs hot and fails well before its rated lifespan, especially in Bangalore's warmer months. A wall-mounted cabinet in a ventilated utility area is a far better choice.

5. Camera housing not IP67 rated. Outdoor cameras in Bangalore face heavy monsoon rain from June through September and persistent dust the rest of the year. A camera housing rated below IP67 lets moisture and fine dust reach the lens and electronics. Within a year, image quality degrades noticeably, and the camera may fail outright. We specify IP67-rated housings as standard for every outdoor position.

How a Mahalakshmi Layout Install Runs

1. Site survey. We measure actual boundary distances to neighbouring houses on every side — not just the homeowner's own compound dimensions — and note proximity to schools and the Yeshwanthpur boundary. Existing electrical conduit routes, switchboard locations, and the planned NVR position are mapped during the same visit. For school-adjacent houses, we note the specific drop-off and pickup windows that will need sensitivity tuning.

2. Equipment specification. The site survey produces a detailed bill of quantities listing every camera, cable run, connector, NVR, hard disk, UPS, and mounting bracket. For Yeshwanthpur-boundary houses, a dedicated surge protector is included as standard. Camera types are matched to their mounting position — compact dome cameras for tight boundary walls, narrow-angle bullet cameras for gate and driveway coverage.

3. Privacy-safe placement plan. Before installation begins, we check every proposed camera's field of view from the neighbour's side of the boundary as well as the homeowner's. Each camera is angled tightly to its intended target — gate, driveway, entrance — and physical shields are specified where the boundary distance is very close and the geometry leaves no room for a wider angle without encroaching on the neighbour's property.

4. Installation and testing. Every outdoor camera angle is verified both from within the compound and from outside it to confirm no neighbour's private area is captured. School-hour sensitivity tuning is configured and tested on day one rather than left as a post-installation adjustment. Night-time IR range is tested after dark to ensure coverage meets the homeowner's expectations without IR light spilling excessively toward a neighbouring property.

5. Handover. The homeowner receives app setup on their phone, admin credentials for the NVR, and a document covering the school-hour schedule configuration so they can adjust timing if school hours change. Every installation carries a 12-month warranty on equipment and workmanship. An optional annual maintenance contract at Rs 3,000 to 5,000 per year covers up to 8 cameras with quarterly visits for lens cleaning, cable inspection, HDD health testing, firmware updates, and surge protector checks.

Privacy and BIS Rules for Close-Set Homes

BIS IS 732:2019 — all power wiring for camera and NVR circuits follows this standard for electrical installation practice. Full text available at bis.gov.in.
Surge protection — critical for Yeshwanthpur-boundary houses exposed to industrial-linked voltage spikes, and recommended as a precaution for all Mahalakshmi Layout installations regardless of location within the layout.
Property boundary compliance — on compact Mahalakshmi Layout plots, boundary distances are smaller than usual, making it more important than on a spacious property that no camera captures a neighbour's private areas. Every camera's field of view is checked from the neighbour's side during installation.
Children's privacy — in a layout with several schools and many family homes, cameras must never cover children's play areas inside the house. All camera coverage is restricted to exterior entry points and the compound perimeter.
Audio recording — recording audio without the knowledge of the person being recorded violates the Indian Telegraph Act, 1885. Audio capture is disabled by default on all our installations unless the homeowner has a specific, disclosed use case.
Data retention under DPDP Act, 2023 — recorded footage should be retained for 30 to 90 days depending on the homeowner's requirements, then deleted. We configure automatic overwrite cycles on the NVR to enforce this.
GST at 18% — applicable on CCTV equipment under HSN codes 8525 (cameras) and 8521 (recording devices). Current rates are published at cbic.gov.in.
Voluntary police registration — registering a CCTV system with the local police station is not mandatory but is recommended, as it establishes the system's existence on record and can simplify any future interaction with law enforcement if footage is needed as evidence.

The school-day routine on the automation side is explained in home automation in Mahalakshmi Layout. For nearby areas, see CCTV in Basaveshwara Nagar and CCTV in Malleshwaram.

Mahalakshmi Layout CCTV Questions

What should I budget for CCTV in a compact Mahalakshmi Layout house?

A standard independent house on a compact Mahalakshmi Layout plot costs Rs 26,000 to 42,000 for a basic 4 to 6 camera system. A house near one of the area's several schools, where entrance camera settings are tuned for drop-off and pickup traffic, costs Rs 32,000 to 50,000. A house on the Yeshwanthpur-facing boundary, where we add surge protection and UPS backup against industrial-linked power fluctuation, costs Rs 38,000 to 60,000. A larger redeveloped house (G+2) costs Rs 55,000 to 90,000 for a fuller camera count.

Why does plot size matter for CCTV placement in Mahalakshmi Layout?

Mahalakshmi Layout covers a compact area of under 1.5 square kilometres, and its plots and street spacing sit closer together than in the larger CITB layouts nearby. A wide-angle camera that suits a spacious plot elsewhere can easily capture a neighbour's window, balcony, or private yard here simply because the gap between houses is smaller. We check every camera's field of view against the actual boundary distance to the next house, not just against the standard placement guide, and narrow the angle or add a physical shield where a wider lens would otherwise cross onto a neighbour's property.

How should CCTV handle school drop-off and pickup traffic in Mahalakshmi Layout?

With several schools in the layout, including BGS World School and Orchids International, houses on school-adjacent streets see a predictable daily spike in vehicle and foot traffic during drop-off and pickup hours. A motion-triggered camera set to default sensitivity fills its log with the same parents, buses, and autos every single day at the same two windows. We set a scheduled sensitivity reduction during known school-hour peaks so the system keeps recording but stops treating routine school traffic as an alert-worthy event, keeping the motion log useful rather than cluttered.

Do houses near Yeshwanthpur need extra CCTV power protection?

Mahalakshmi Layout borders Yeshwanthpur, an area with a significant rail yard, wholesale market, and industrial presence, and houses on that boundary side occasionally see sharper voltage fluctuations tied to nearby heavy load than houses in the layout's interior. For these properties we specify a dedicated surge protector on the camera and NVR power line in addition to the standard UPS, since a single surge from an industrial-linked fluctuation can damage an NVR and every connected camera in one event.

Can CCTV be concealed on a compact Mahalakshmi Layout plot without looking intrusive?

Yes. On a tighter plot, an obviously large camera housing close to a shared boundary wall can feel more intrusive to a neighbour than the same camera on a spacious independent plot. We favour compact dome cameras over large bullet housings on boundary-facing walls where the neighbour's house sits close by, and angle each one tightly to its intended purpose — the gate, the driveway — rather than a wide sweep that happens to also cover the neighbour's side of the fence.

What CCTV setup suits a family home with young children in Mahalakshmi Layout?

Given the number of schools in the layout, many Mahalakshmi Layout households are dual-income families with school-going children. A camera covering the main gate and driveway gives peace of mind for a child arriving home before a parent does, and pairing it with a video doorbell lets a parent verify who is at the door remotely. We avoid placing any camera with a view into play areas inside the house, keeping coverage to entry points and the compound rather than living spaces where children spend unsupervised time.

What annual maintenance does a CCTV system in Mahalakshmi Layout need?

A standard AMC at Rs 3,000 to 5,000 per year for up to 8 cameras covers quarterly lens cleaning (more often for houses near the Yeshwanthpur boundary where dust levels are higher), cable and connector inspection, HDD health testing, firmware updates, bracket tightening, and a review of school-hour sensitivity schedules. Surge protectors on boundary houses are tested at each quarterly visit. Our studio is in nearby Basaveshwara Nagar, so callbacks for any issue between scheduled visits are quick.

Is IP or analog better for a compact Mahalakshmi Layout house?

IP cameras with PoE are ideal for compact plots because a single CAT6 cable carries both video and power, reducing the number of cables to route through tight spaces. Analog HD works if existing coaxial cabling is already in place. For most Mahalakshmi Layout installations, we recommend IP with compact dome cameras on boundary-facing walls and a single PoE switch powering the entire system from the NVR cabinet, keeping the wiring footprint as small as the plot itself.

Plan CCTV for Your Mahalakshmi Layout Plot

Tell us your house type and whether you're near a school or the Yeshwanthpur boundary. We will send a detailed quote with camera positions marked on your floor plan.
