CCTV Camera Installation in Malleshwaram

← CCTV Camera Installation in Bangalore

Malleshwaram was laid out in 1889 — one of Bangalore's oldest planned suburbs, older than the CITB layouts that followed decades later — and its numbered Cross Roads and Main Roads off Sampige Road and Margosa Road still carry the tree canopy and heritage bungalows that grid was built around. That history shapes CCTV planning here more than in any other locality we work in: mature trees overhang compound walls and block camera sightlines, many original bungalows have a rented-out portion that needs its own monitoring zone, and a fair number of family homes already have an ageing DVR system from a decade ago that needs a decision, not a replacement by default. This page covers camera placement around tree canopy, owner-tenant zoning, legacy DVR upgrades, and real costs for Malleshwaram's mix of original bungalows, renovated homes, and newer subdivided-plot houses.

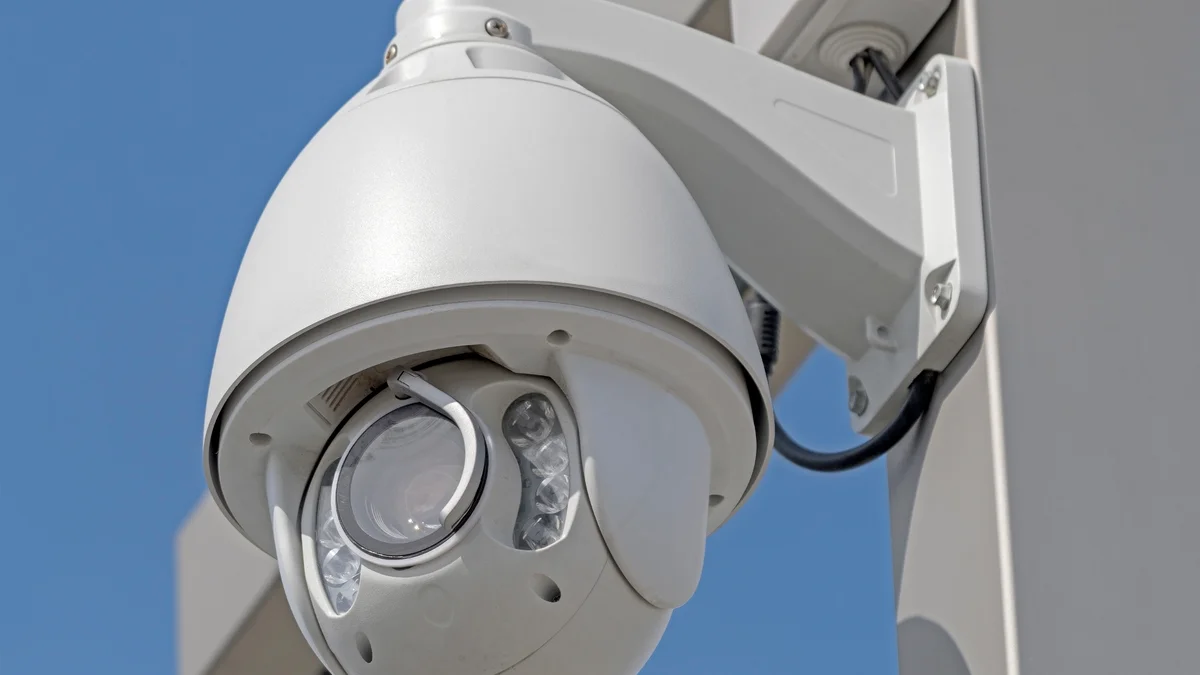

Camera Placement Under a Tree Canopy

Malleshwaram's Cross Roads were planted with rain trees, coconut palms, and mango trees around the same time the bungalows went up, and many of those trees are now taller than the houses themselves. This is good for the street and a genuine complication for CCTV. A gate or compound-wall camera mounted at the usual 2.3 to 2.5 metre height often has its view partly blocked by a low branch within months, and the blockage shifts every time the tree is pruned or a monsoon storm brings a branch down.

Our approach for tree-lined Malleshwaram plots:

• Mount higher than standard. Gate and compound-wall cameras go up around 3 to 3.3 metres where the compound design allows, clearing the low branch line that a 2.4 metre camera would sit under.
• Angle to look under the canopy, not through it. A camera angled slightly downward toward the gate and driveway keeps the field of view below the leaf line, rather than aimed outward where a swaying branch drifts in and out of frame and triggers false motion alerts all day.
• Leave slack in the cable run. We route 1 to 1.5 metres of extra CAT6 or coaxial cable coiled near the camera mount, so the camera can be repositioned a short distance after a heavy pruning without opening the wall channel again.
• Skip motion-only recording on badly shaded cameras. A camera under dense, moving foliage stays on continuous recording rather than motion-triggered, because wind-blown leaves generate near-constant false triggers that would otherwise fill the hard disk with nothing useful.

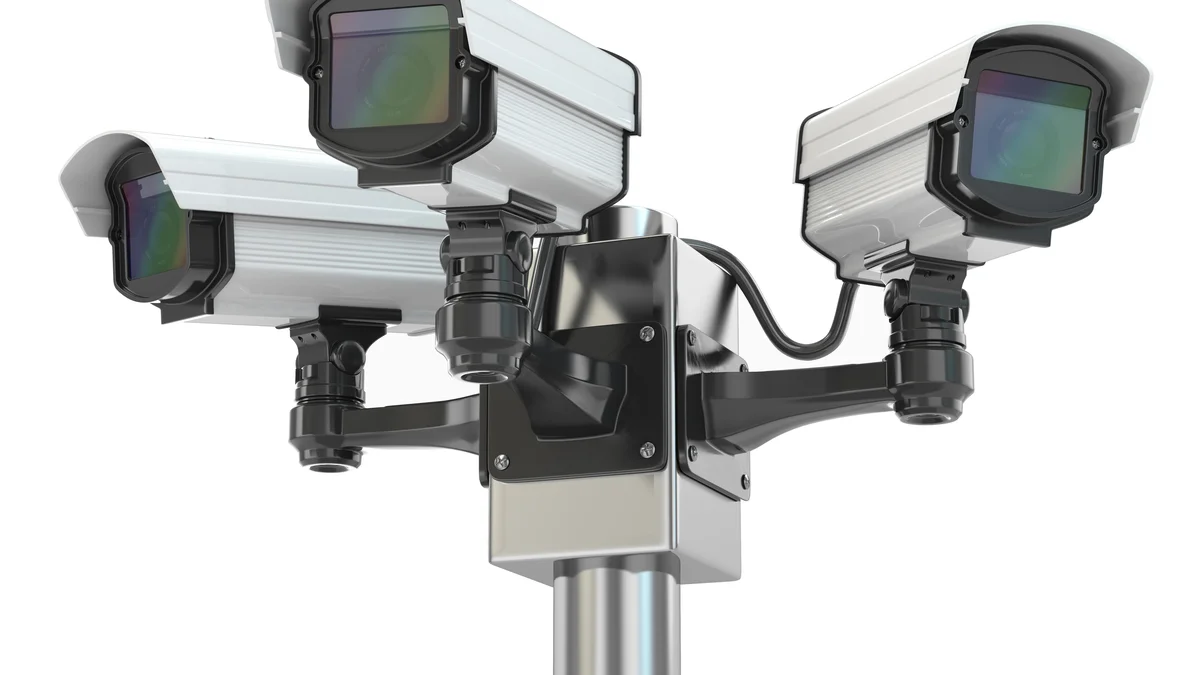

Owner and Tenant Zones in One Bungalow

It is common in Malleshwaram for the original bungalow to house the owner's family in the front and main portion, with a rear outhouse, an upper floor, or a converted portion let out to tenants unrelated to the family — often a young professional or a small family renting close to the Sampige Road metro station or IISc. A single shared NVR with all cameras dumped into one undivided view is awkward for both sides: the owner does not want to casually see into the tenant's daily comings and goings, and the tenant is right to expect the same.

We split the system into two zones on one NVR rather than installing two separate systems:

• Owner zone — main gate, owner's entrance, parking, and any interior areas the owner wants covered, visible on the owner's primary app login.
• Tenant zone — the tenant's separate entrance and staircase only, kept as a distinct channel group that the owner can view only when there is a specific reason to (a delivery dispute, a maintenance issue), not as part of the everyday live view.

Where the tenant portion has its own street-facing gate, we also offer the tenant a view of their own zone through a separate app login, which most Malleshwaram landlords we work with are happy to set up — it removes any suspicion that the landlord is watching the tenant's private movements, while still covering the shared boundary and entry points that matter for security.

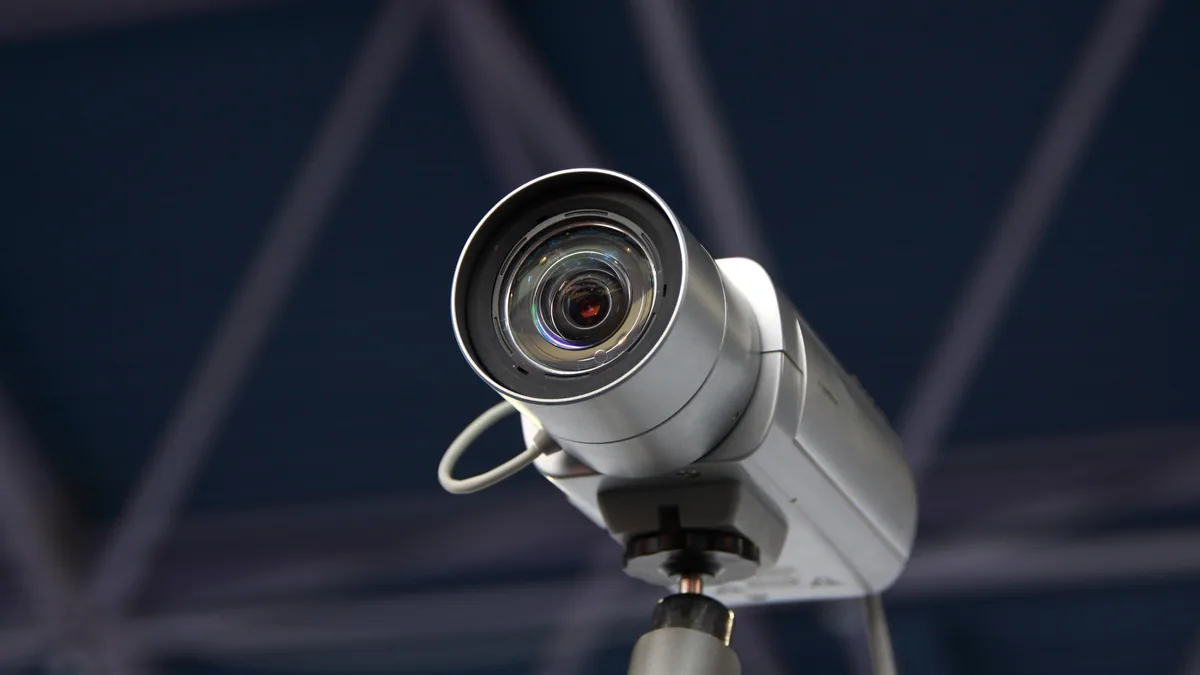

Wiring an Original Heritage Bungalow

An unrenovated Malleshwaram bungalow from the 1950s or 60s has lime-plastered brick walls and a Madras-tiled roof, both very different from the RCC construction a modern conduit plan assumes. Chasing a clean channel into old lime plaster risks cracking a wide area of wall, so for these houses we avoid it:

• Cable runs along skirting boards and door or window frame edges, held with small cable clips, then painted to match the wall or frame colour
• Where the roof has an accessible void above the Madras tiles, cable runs through that void rather than down an internal wall
• The NVR and PoE switch sit in a ventilated cupboard or an added shelf unit rather than a wall-recessed cabinet, since recessing into old masonry has the same cracking risk as channelling for cable

For a bungalow that is being renovated rather than left as-is, this changes entirely — renovation work opens the walls anyway, so we plan concealed conduit the same way we would for a new build, at the same lower cost.

How Much Does CCTV Cost in Malleshwaram?

Costs vary more by house type in Malleshwaram than in newer, more uniform layouts, because the mix of original bungalows, renovated homes, and rebuilt houses on subdivided plots each need a different wiring approach.

If your house already has a working analog DVR system, reusing sound coaxial runs with new analog HD cameras typically saves Rs 8,000 to 15,000 against a full IP rewire — we assess this during the site survey before recommending either path. See our main CCTV camera installation page for camera types, storage options, and BIS safety standards that apply across Bangalore.

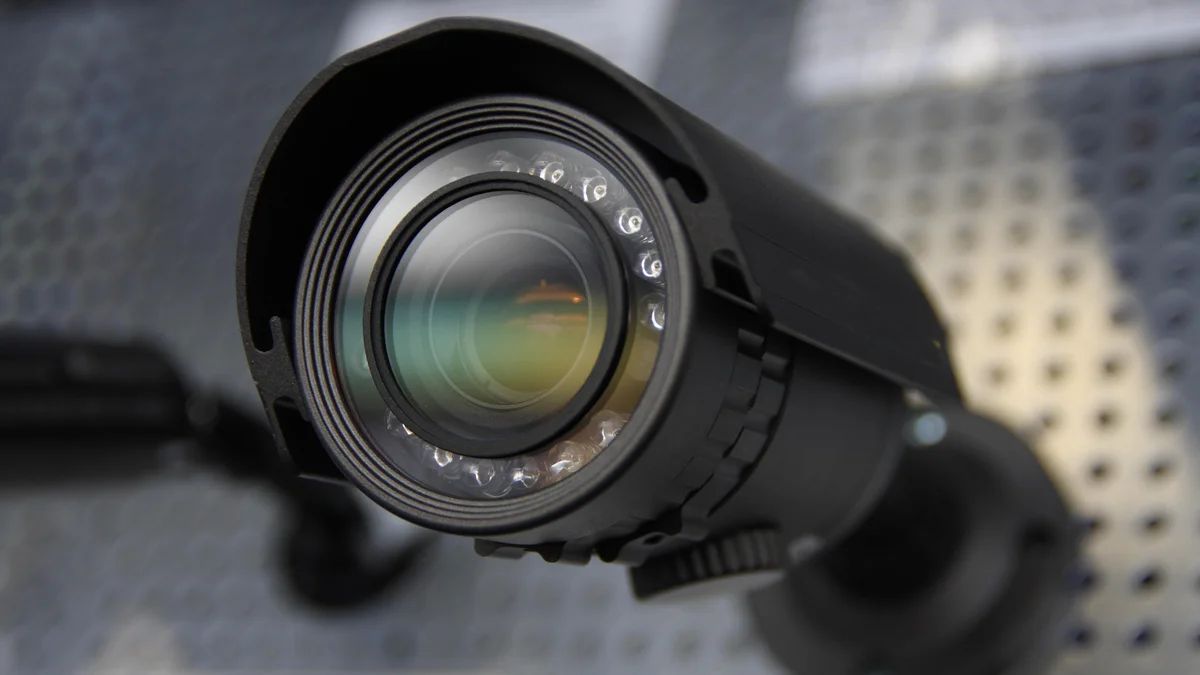

Coverage Near Sampige Road and Margosa Road

Houses fronting the Malleshwaram market stretch near Sampige Road and Margosa Road see very different daytime activity than a quiet interior Cross Road — heavier vehicle and foot traffic through the week, and considerably more on Saturday during the weekly Santhe. For these frontages, a narrow-angle camera set for a quiet residential street misses too much, and strong afternoon backlight off the market road can silhouette anyone standing at the gate. We specify a wider-angle bullet camera (120 degrees or more) at market-facing gates, with WDR (Wide Dynamic Range) handling where the frontage gets direct afternoon sun, so a face at the gate stays identifiable against a bright, busy street rather than lost in glare.

What Goes Wrong With Malleshwaram CCTV

After years of installing and servicing CCTV in this locality, we keep running into the same avoidable problems — often because the previous installer did not account for what makes Malleshwaram different from a newer layout. Here are the five we see most often.

1. Camera view blocked by tree growth within months. Malleshwaram's Cross Roads are lined with mature rain trees and mango trees whose branches grow back quickly after each pruning cycle. A camera mounted at the standard 2.4 metre height on a compound wall under one of these trees can lose half its field of view to a low branch within a single monsoon season. We mount canopy-adjacent cameras at 3 metres or higher and angle them to look under the foliage rather than through it.

2. Heritage bungalow wall cracked by aggressive cable chasing. Older Malleshwaram bungalows have lime-plastered brick walls, not modern RCC. An installer who chases a deep channel into this plaster the way they would in a newer building risks cracking a wide patch of wall that is expensive to restore. Surface-run conduit along skirting boards and door frames avoids this entirely.

3. Tenant-zone cameras showing the owner's private areas. In split bungalows where the rear portion or upper floor is rented out, a single undivided camera view means tenant-facing cameras also pick up the owner's courtyard or parking. We zone the NVR into separate channel groups so each party sees only their own areas by default.

4. Entire DVR system replaced when the coaxial cable was still usable. Many Malleshwaram homes already have coaxial cable runs from an older analog DVR installed 8 to 10 years ago. Some installers replace the entire system — cable included — with a fresh IP setup, adding Rs 8,000 to 15,000 in unnecessary rewiring cost. We test the existing coaxial first and reuse it with new analog HD cameras if it is sound.

5. Market-facing camera washed out by afternoon backlight. Houses on or near Sampige Road and Margosa Road get strong afternoon sun from the west. A standard camera without WDR (Wide Dynamic Range) turns every person at the gate into a dark silhouette against the bright street behind them. We specify WDR-capable cameras for any frontage that faces the market side.

A Malleshwaram Bungalow Job Start to Finish

Every Malleshwaram installation follows five steps, adjusted for the specific house type — whether it is an original lime-plaster bungalow, a renovated heritage home, or a newer subdivided-plot house.

Step 1: Site survey. We walk the full compound, checking the tree canopy height and spread, noting wall construction (lime plaster versus RCC), measuring cable run distances from each proposed camera point to the NVR location, and checking for any existing DVR or coaxial wiring from a previous installation. This visit takes 45 minutes to an hour for a typical Malleshwaram bungalow.

Step 2: Equipment specification. Based on the survey, we prepare a detailed Bill of Quantities with unit costs for each camera, the NVR or DVR, cabling, power supply, and mounting hardware. Where usable coaxial cable already exists, we present both options — reuse the coaxial with analog HD cameras, or pull fresh CAT6 for a full IP system — with the cost difference clearly shown.

Step 3: Wiring plan. For unrenovated heritage bungalows, all cable runs are surface-mounted along skirting boards, door frames, or through the roof void, with no chasing into lime plaster. For renovated or newer homes, we plan concealed conduit. In tree-canopy areas, we include 1 to 1.5 metres of cable slack at each camera point so the mount can be repositioned after a pruning cycle without redoing the wiring.

Step 4: Installation and testing. Every camera angle is verified during the day and again after dark. Cameras near tree canopy are specifically tested for false motion triggers from swaying leaves and branches — if the trigger rate is too high, we switch that camera to continuous recording. Market-facing cameras are tested for backlight washout in the afternoon.

Step 5: Handover. We set up the mobile app on the owner's phone, hand over the admin credentials, and leave a written note of any tree-trimming schedule that affects camera sightlines. The installation carries a 12-month warranty on equipment and workmanship. An optional Annual Maintenance Contract at Rs 3,000 to 5,000 per year covers lens cleaning, angle checks after storms or pruning, firmware updates, and hard disk health checks for up to 8 cameras.

Legal and Safety Points for Older Bungalows

CCTV installation in Malleshwaram must follow the same electrical safety and privacy requirements as anywhere else in Bangalore, but a few points matter more here because of the locality's older wiring, mature tree canopy, and subdivided heritage plots.

• BIS IS 732:2019 compliance. All power wiring for cameras, NVR, and PoE switches must follow BIS IS 732:2019 standards for electrical installations. We use ISI-marked cable, proper earthing, and MCB protection on the CCTV power circuit.
• Surge protection for outdoor cameras. Cameras mounted on compound walls under tree canopy are more exposed to monsoon lightning strikes conducted through wet branches. We install surge protectors on the power and data lines of every outdoor camera.
• Property boundary compliance. Cameras on heritage plots must point within the owner's own compound. Many older Malleshwaram plots had generous setbacks, but subdivision over the decades has brought neighbouring boundaries closer, so a wide-angle gate camera that was fine on the original plot may now capture a neighbour's entrance on the subdivided layout. We verify angles during installation.
• Tenant privacy. In bungalows with a rented-out portion, no camera may point at the tenant's private door, window, or balcony. The tenant should be informed in writing that common-area cameras (shared gate, staircase) are in operation.
• Audio recording restrictions. Recording audio without the knowledge of the person being recorded may violate the Indian Telegraph Act, 1885. We disable audio recording by default on all cameras and enable it only where the owner specifically requests it for an intercom-linked gate camera.
• Data retention under the DPDP Act, 2023. Footage should be retained only as long as it serves its security purpose — typically 30 to 90 days — and then overwritten or deleted. We configure the NVR's recording cycle to match this window.
• Voluntary police registration. Bangalore Police accepts voluntary registration of residential CCTV systems. While not mandatory, registered systems are more useful during an investigation because the police know the footage exists and where to request it.

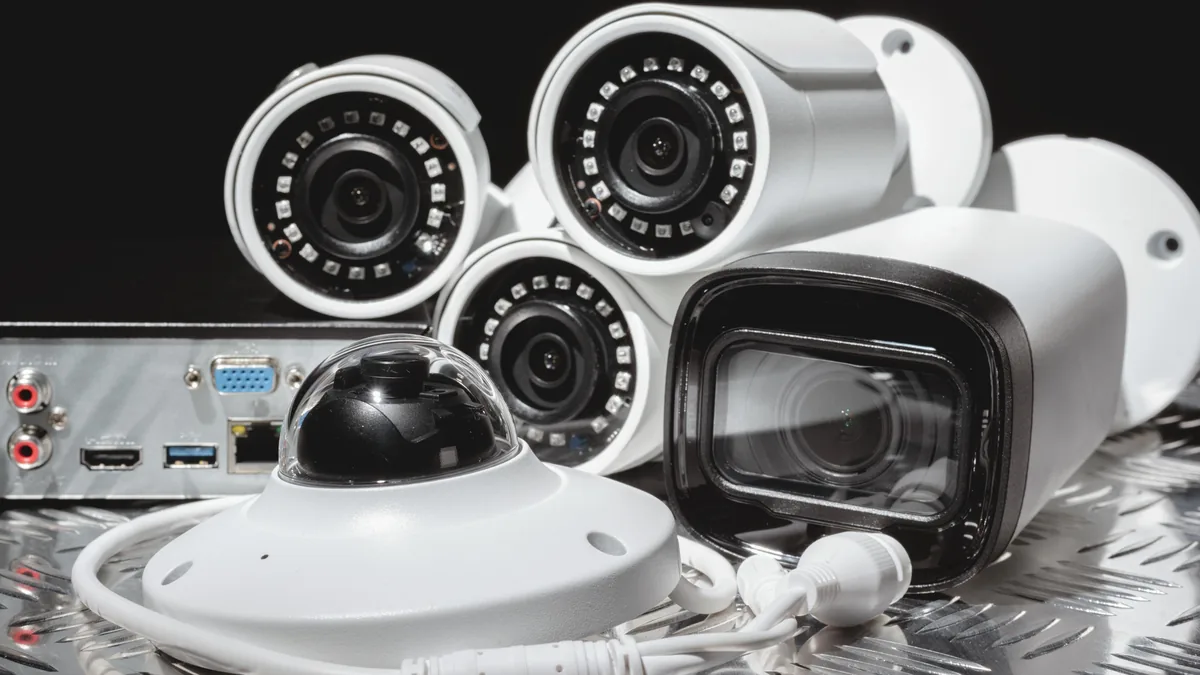

DVR Upgrade vs Fresh IP System

A large number of Malleshwaram family homes already have an analog DVR system installed 8 to 10 years ago. The cameras have faded, the night vision range has dropped, and the DVR itself may have a failing hard disk — but the coaxial cable running through the walls is often still perfectly usable. The decision between upgrading on the existing coaxial and starting fresh with an IP system comes down to four factors.

Our recommendation: if the existing coaxial is sound and budget is a concern, analog HD cameras on the same cable deliver a meaningful upgrade in resolution and night vision at a lower total cost. If resolution above 5 MP matters, or if you want the flexibility to add cameras later without pulling new cable, a fresh IP system is the better long-term investment. We test every coaxial run during the site survey so you have the facts before deciding.

For wireless controls in the same bungalow, see home automation in Malleshwaram. Close by, read CCTV in Rajajinagar and CCTV in Mahalakshmi Layout.

Malleshwaram CCTV Questions

What does a CCTV system cost for a Malleshwaram bungalow?

An original, unrenovated heritage bungalow with surface-run conduit costs Rs 30,000 to 48,000 for a basic 4 to 6 camera system, because the lime-and-brick walls do not take a chased channel easily. A renovated heritage bungalow with concealed wiring planned during the renovation costs Rs 42,000 to 68,000. A newer independent house built on a subdivided Malleshwaram plot (G+2 or G+3) costs Rs 60,000 to 95,000 for a fuller 8 to 10 camera setup. A house with a separate owner and tenant portion, needing two zoned NVR channels, costs Rs 55,000 to 1.1 lakh.

Do overhanging trees affect CCTV camera placement in Malleshwaram?

Yes. Malleshwaram's older Cross Roads and Main Roads are lined with mature rain trees, coconut palms, and mango trees that were planted decades ago along with the bungalows themselves. A camera mounted at the standard 2.4 metre height on a compound wall can have its view blocked by low branches within a year of installation, and the blockage changes with each pruning cycle. We mount gate and compound-wall cameras higher than usual, angle them to look under the canopy rather than through it, and route an extra length of cable so the camera can be repositioned after a heavy trim without redoing the wiring.

How does CCTV work for a heritage bungalow with a rented-out portion?

Many Malleshwaram bungalows have a rear outhouse or an upper floor let out separately, often to tenants unrelated to the owner's family. We split the system into two zones on the same NVR: one channel group covering the owner's entrance, parking, and living areas, and a separate channel group covering the tenant's entry and staircase. Each zone can be viewed independently on the app, so the owner sees their own areas by default and only pulls up the tenant zone footage if there is a specific reason to, which keeps the arrangement fair to both parties.

Can CCTV be added to an old Malleshwaram bungalow without breaking the walls?

Yes, though it needs a different approach than a new-build. Original lime-plastered brick walls in decades-old Malleshwaram bungalows are harder to chase a clean channel into than modern RCC walls, and doing so risks cracking the plaster. For an unrenovated bungalow, we run cable along skirting boards, inside existing wooden window and door frames, or through the roof void above the Madras-tiled ceiling, and paint the visible runs to match the wall colour. This keeps the wiring tidy without disturbing the original masonry.

What about houses in Malleshwaram that already have an old CCTV DVR system?

It is common for a Malleshwaram family home to already have an analog DVR system installed 8 to 10 years ago that has started to fail or lacks night vision range. We assess whether the existing coaxial cable runs can be reused with new analog HD cameras (a cost-effective upgrade), or whether the house should move to an IP NVR system with fresh CAT6 runs for sharper resolution and app-based remote viewing. Reusing sound coaxial cable typically saves Rs 8,000 to 15,000 compared to rewiring the whole house.

Where should cameras go on a market-facing house near Sampige Road or Margosa Road?

Houses fronting the Malleshwaram market stretch near Sampige Road and Margosa Road see far heavier daytime foot and vehicle traffic than a quiet interior Cross Road, especially during the Saturday Santhe. For these frontages we specify a wider-angle bullet camera at the gate (120 degrees or more) set to a shorter clip-review interval, plus a WDR-capable camera if the frontage gets strong afternoon backlight, so a face is still identifiable against a bright, busy street rather than lost in glare and crowd motion.

How often do tree-canopy cameras need maintenance in Malleshwaram?

Cameras under dense rain trees and mangoes need lens cleaning every 2 to 3 months because of bird droppings, sap, and leaf debris, compared to every 6 months for a camera in a clear location. After monsoon pruning or a storm, check that the camera angle has not shifted from branch movement. An AMC at Rs 3,000 to 5,000 per year covers up to 8 cameras including these seasonal checks.

Can I keep my existing Malleshwaram bungalow's old coaxial cable when upgrading CCTV?

If the coaxial runs are intact with no joins and no weather damage, yes — we connect new analog HD cameras (HD-TVI or CVI) to the existing cable for sharper resolution without rewiring. We test each cable run during the site survey. Reusing sound coaxial saves Rs 8,000 to 15,000 compared to pulling fresh CAT6 for an IP system.
