CCTV Camera Installation in Vijayanagar

Vijayanagar sits between Mysore Road and Magadi Road with Chord Road running through it, and carries three Purple Line metro stations within its own boundaries — Balagangadharanatha Swamiji, Vijayanagara, and Attiguppe — more metro density than almost any other locality we work in. That, combined with strong rental demand from students near R.V. College, PES, and M.S. Ramaiah and from IT professionals, and limited land that keeps most houses on older, established plots rather than fresh redevelopment, shapes CCTV planning here in a specific way: cameras near the elevated viaduct need their angle and cleaning schedule adjusted for shifting shadow and dust, houses subdivided into three or four rental portions need genuinely multi-zone NVR setups rather than a simple two-way split, and frontages on the two arterial roads need tougher, higher-resolution hardware than a quiet interior lane. This page covers all three, plus real costs for Vijayanagar's house types.

Illustrative diagram, not to scale: shared areas are covered, tenant rooms are not.

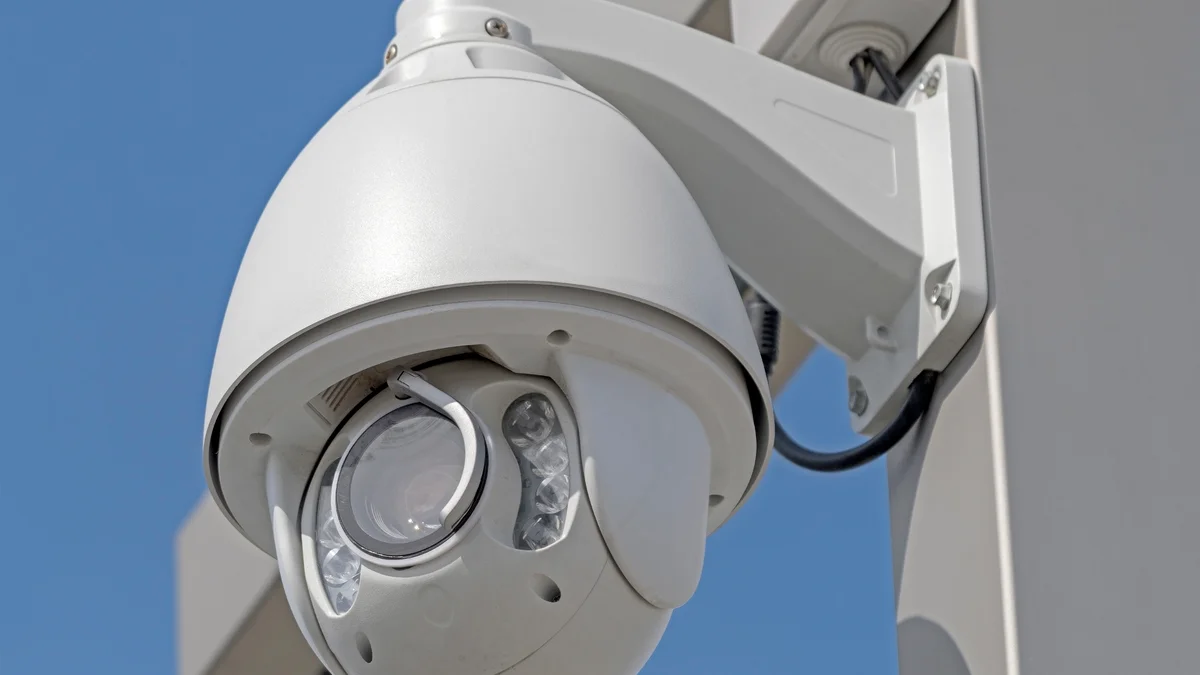

Camera Placement Near the Metro Corridor

Houses close to the Purple Line viaduct through Vijayanagar deal with two things a house further from the corridor does not: a large elevated structure that casts a moving shadow across the street through the day, and noticeably more ambient dust from ongoing station-area construction and the sheer passenger footfall around three nearby stations. Neither is a reason to avoid mounting a camera near the corridor, but both change how we set it up.

Shadow-aware angling. A camera aimed to catch a gate in full sun at 10 AM can be looking into deep viaduct shadow by 2 PM. We check the angle against the shadow line through the day, not just at the time of the site survey, and favour a WDR-capable camera on frontages where the shadow edge falls directly across the entrance.
Shorter lens-cleaning interval. Dust settles faster on outdoor camera housings near the corridor than on a quiet interior Cross Road. We flag these cameras for a 2 to 3 month cleaning check rather than the standard 6 month interval, and note it in the handover guide.
Bracket rigidity. Housing close to the elevated structure can pick up minor vibration from passing trains. A slightly heavier-duty mounting bracket keeps the camera from developing a visible wobble in its footage over time.

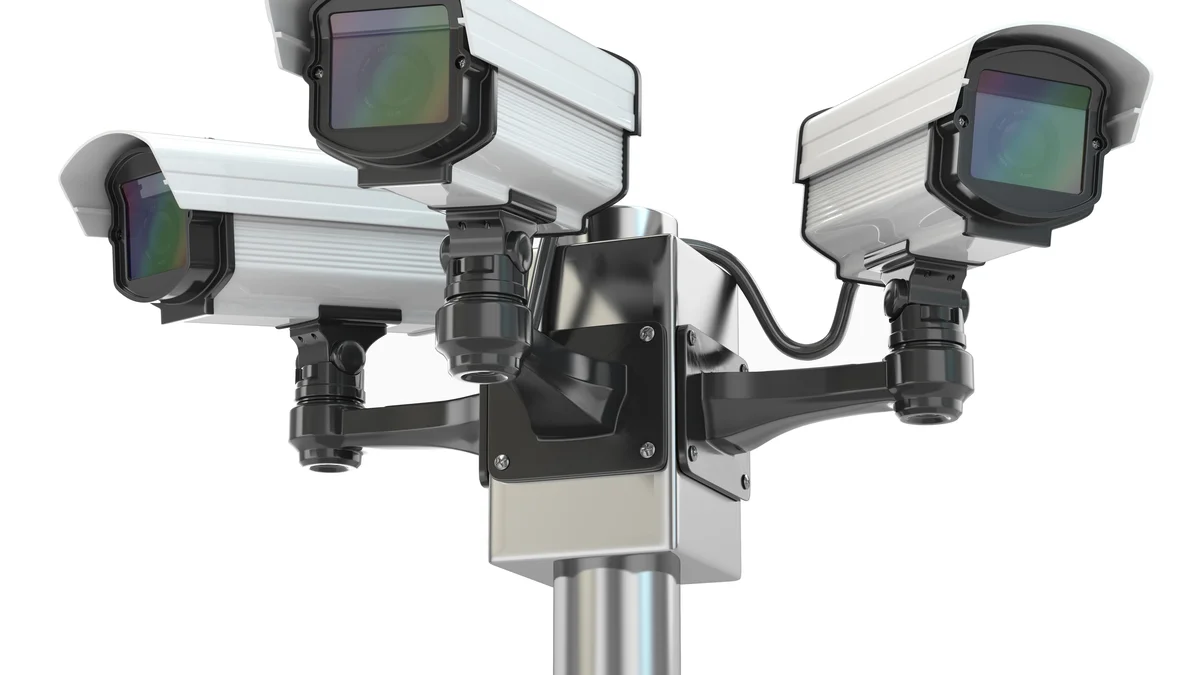

Multi-Zone CCTV for PG-Style Rental Houses

Vijayanagar's strong rental demand from students and IT professionals, paired with limited land for fresh construction, means a lot of independent houses here are subdivided into more than the simple owner-plus-one-tenant arrangement we plan for in other localities. It is common to find a house let out floor by floor, or as three or four separate room clusters, each with its own tenant and its own entrance or staircase.

For these houses we plan the NVR around as many independent zones as the house actually has, not a generic two-way split:

Each tenant portion gets its own channel group covering that portion's entrance and staircase only
The landlord's own login can see every zone, but each is reviewed as a separate feed rather than one undivided view mixing every tenant's daily movement together
Where the property manager or caretaker needs access, a restricted login can be set up covering only the shared common areas (main gate, parking), not individual tenant zones

This scales the same principle we use for a two-portion heritage bungalow — see how we approach it for a single owner-plus-tenant house on our CCTV camera installation in Malleshwaram page — but built out for a house with several independent lettings rather than just one.

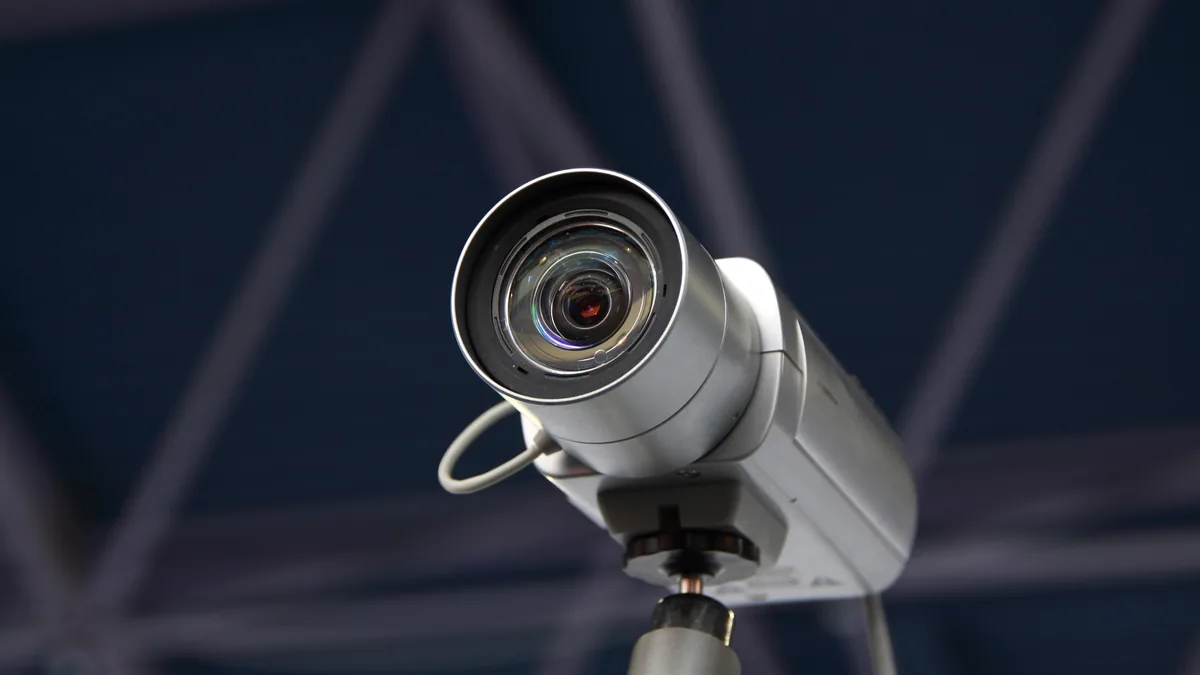

Frontages on Mysore Road and Magadi Road

A house with its gate directly on Mysore Road, Magadi Road, or the Chord Road running through the locality sees continuous arterial traffic all day, not the occasional car that passes a quiet interior lane. A camera specified for a low-traffic residential street — a standard 2MP dome with a wide, soft field of view — is not enough here. For these frontages we specify a 4MP or higher bullet camera in a dust and exhaust-resistant IP67 housing, angled tighter on the gate itself so a face or number plate stays readable against a background of continuous passing traffic rather than getting lost in it.

How Much Does CCTV Cost in Vijayanagar?

House Type	Cameras	NVR Zones	Cost Range
Owner-occupied independent house	4 – 6	1	Rs 28,000 – 45,000
Subdivided rental (2 portions)	6 – 8	2	Rs 45,000 – 72,000
Multi-tenant PG-style (3 – 4 zones)	8 – 12	3 – 4	Rs 65,000 – 1.05 lakh
Arterial-road frontage (any type, add-on)	+1 upgraded camera	–	+Rs 8,000 – 15,000

For an older, established house that has not been recently renovated, cable can usually run along existing skirting and frames rather than requiring wall-breaking — see our main CCTV camera installation page for how we approach retrofits, camera types, and storage options that apply across Bangalore.

Retrofit Wiring in Established Vijayanagar Houses

Most houses in Vijayanagar sit on plots that were developed decades ago, and the majority have not undergone a full electrical renovation since. A fresh-build approach to CCTV wiring — concealed conduit chased into walls during construction — is not practical here without significant disruption, especially when tenants are already in place. Instead, the wiring method needs to work around the house as it stands today.

Surface conduit along skirting and door frames is the low-disruption default for tenanted rental houses. The cable runs along the base of walls and over door frames, secured inside slim PVC casing. No wall-breaking is needed, and the work can be completed in a few hours without requiring the tenant to vacate. For houses that have a false ceiling — more common in recently redeveloped G+1 or G+2 properties than in original single-storey houses — cable can be routed through the ceiling void, keeping runs completely hidden from view.

The NVR itself is best placed in a compact wall-mounted cabinet on a landing or in a utility area near the electrical distribution board. Ventilation is necessary — a sealed cabinet in a warm stairwell will shorten hard-disk life — and the unit should sit on a dedicated 15A socket connected to the inverter circuit so it keeps recording through a power cut. For multi-tenant houses with three or four separately let portions, each zone should have its own cable run back to the NVR rather than sharing a single conduit between zones. This avoids the practical problem of one tenant's cable being disturbed during maintenance on another zone's wiring.

Any visible external cable run — along an outside wall to reach a compound-wall camera, for instance — should use paint-matched casing rather than bare white PVC. It is a small detail, but it prevents the installation from looking like an afterthought on an otherwise well-maintained house front.

Camera Types for Vijayanagar Homes

Not every camera suits every position on a Vijayanagar property. The right type depends on where it is mounted, what it is covering, and whether the location is exposed to arterial-road conditions or sheltered inside the house.

Bullet Cameras

Best suited for gate and compound-wall positions where the camera faces outward toward the street. An IP67-rated housing is required on Vijayanagar properties — arterial-road dust and vehicle exhaust from Mysore Road and Magadi Road settle on exposed housings quickly. A 4MP sensor is the minimum we recommend for any frontage on these roads, because a lower resolution loses detail against the continuous movement of passing traffic behind the person at the gate.

Dome Cameras

Dome cameras work well in porticos, staircase landings, and internal corridors — positions where a bullet camera's protruding shape would look out of place. Their discreet, ceiling-flush profile makes them a better fit for tenant areas in a multi-portion house, where a prominent camera can feel intrusive even when it only covers shared space.

PTZ Cameras

Pan-tilt-zoom cameras suit larger PG-style properties that have an open parking area or a wide compound. A single PTZ unit can sweep across a space that would otherwise need two or three fixed cameras. They are not cost-effective for a standard residential gate, but for a property with 8 to 10 parked vehicles and tenant foot traffic across an open yard, one PTZ replaces multiple fixed units.

Wireless / WiFi Cameras

For individual tenant portions where running a dedicated cable to each floor is impractical or where the tenant wants their own private coverage inside their let-out space, a wireless camera on the tenant's own Wi-Fi network is the simplest option. These cameras are tenant-owned and operate separately from the landlord's wired NVR system, so the tenant controls their own footage without it passing through the landlord's recorder.

Vijayanagar CCTV Pitfalls

After completing installations across dozens of Vijayanagar properties, certain recurring mistakes stand out — ones that are specific to the locality's mix of metro corridor, arterial-road frontages, and multi-tenant housing rather than generic CCTV errors.

1. Single NVR with no zone separation in a multi-tenant house. A house with three or four independently let portions gets fitted with a single undivided NVR feed. Every tenant's daily movement — arrivals, departures, visitors — sits on one timeline, visible to anyone with the login. It creates an unnecessary privacy issue and makes reviewing footage for a specific zone far harder than it needs to be. Proper channel-group separation per zone solves this at setup time with no additional hardware cost.

2. Metro-corridor camera not checked for shadow shift. A camera aimed during a morning site survey captures a well-lit gate at 10 AM. By 2 PM the elevated viaduct casts the gate into deep shadow, and the camera's auto-exposure cannot compensate fast enough — faces become silhouettes. Checking the angle against the shadow line at multiple times of day, and specifying a WDR-capable sensor, prevents this.

3. Arterial-road frontage camera specified for a quiet lane. A standard 2MP dome with a wide field of view is installed on a house directly facing Mysore Road. The continuous headlight glare and through-traffic at night washes out the image, making it impossible to identify a face or read a number plate at the gate. A tighter-angled 4MP bullet camera in an IP67 housing is the correct specification for this position.

4. Lens left uncleaned near metro construction dust. Metro-adjacent cameras accumulate a film of fine dust far faster than cameras on quiet interior streets. Within a few weeks the image degrades noticeably — soft edges, reduced contrast, poor night-time IR performance. A 2 to 3 month lens-cleaning interval, rather than the standard 6 months, prevents this gradual loss of clarity from going unnoticed.

5. No UPS backup on the NVR. A power cut — still common enough in parts of Vijayanagar — shuts down the recorder at exactly the time a break-in is most likely. A basic UPS providing 30 to 60 minutes of backup, or connecting the NVR's dedicated socket to the house's inverter circuit, keeps recording running through a typical outage and costs a fraction of the system it protects.

Installing CCTV in Vijayanagar: The Sequence

Every Vijayanagar installation follows a structured five-step process that accounts for the locality's specific conditions — metro proximity, arterial-road frontages, and multi-tenant housing — rather than applying a generic template.

1. Site survey. We walk the full compound and note the house type — owner-occupied, dual rental, or multi-tenant PG — measuring cable runs from each proposed camera position back to the NVR location. For properties near the metro viaduct, we record the shadow pattern at the proposed camera positions. For properties on Mysore Road, Magadi Road, or Chord Road, we assess the traffic density and headlight angle at the gate. This survey determines the equipment list, not the other way around.

2. Equipment specification. We prepare a detailed bill of quantities based on the survey. The zone count determines NVR channel sizing — a 4-channel unit for a single-zone owner-occupied house, an 8-channel for a two-portion rental, a 16-channel for a multi-tenant PG with three or four zones. Storage is sized by zone count and retention requirement, typically a 2TB disk for single-zone and 4TB for multi-zone setups.

3. Wiring plan. Surface conduit along skirting and door frames is the default for established houses; concealed routing is used only in recently rebuilt properties where the walls can accommodate it. In multi-tenant houses, each zone gets its own cable run back to the NVR — no shared conduits between zones — so that maintenance on one zone's wiring does not disturb another tenant's system.

4. Installation and testing. Camera angles are verified at multiple times of day for any property near the metro corridor, checking against shadow shift. Night-time IR coverage is tested after dark. For multi-tenant houses, each zone is verified independently on the NVR — the landlord reviews each channel group's feed before sign-off to confirm that zone boundaries match the actual tenant portions.

5. Handover. Each tenant zone gets a separate restricted login; the landlord receives admin credentials with full access to all zones. For metro-adjacent properties, we provide a lens-cleaning schedule noting the shorter interval those cameras need. Every installation carries a 12-month warranty on equipment and workmanship. An optional annual maintenance contract at Rs 3,000 to 5,000 per year covers quarterly inspections, lens cleaning, HDD health checks, and firmware updates.

Tenant Privacy and BIS Standards

A CCTV installation in a multi-tenant Vijayanagar house needs to meet electrical safety standards and stay within the legal boundaries around surveillance in shared residential property.

BIS IS 732:2019. All power wiring for the NVR, cameras, and UPS must comply with this standard for electrical installations in buildings. The full standard is available from the Bureau of Indian Standards.
Surge protection. Houses on arterial roads with older overhead power lines are more exposed to voltage spikes than those on interior streets with underground cabling. A surge protector on the NVR's power supply is a low-cost safeguard that prevents a single spike from damaging the recorder and its stored footage.
Tenant privacy. Cameras must cover shared areas only — the main gate, staircase, parking area, and common corridors. A camera must never be aimed at a tenant's private entrance door, window, or balcony. This is not optional courtesy; it is a legal requirement in a shared residential property.
Audio recording. Recording audio requires the knowledge and consent of the person being recorded, under the Indian Telegraph Act, 1885. In practice, this means CCTV cameras in shared residential areas should have audio recording disabled unless all tenants and the landlord have agreed to it in writing.
Data retention. Under the Digital Personal Data Protection Act, 2023, recorded footage is personal data. It should be retained only for as long as there is a legitimate purpose — typically 30 to 90 days — and deleted after that period. Indefinite retention of footage from a shared residential property is not compliant.
GST on equipment. CCTV cameras fall under HSN code 8525 and NVR/DVR units under HSN 8521, both attracting 18% GST. The applicable rates and HSN classifications can be verified on the CBIC website.
Voluntary police registration. Registering the CCTV system with the local police station is not mandatory, but it is recommended. It allows the police to contact the property owner if footage from the system could assist an investigation in the area.

Tenant-friendly switches and locks are covered in home automation for Vijayanagar rental houses. Nearby, see CCTV in Rajajinagar and CCTV in Basaveshwara Nagar.

Vijayanagar CCTV Questions

What does CCTV cost for a multi-tenant Vijayanagar house?

An owner-occupied independent house with a basic 4 to 6 camera system costs Rs 28,000 to 45,000. A house subdivided into two rented portions, needing separate NVR zones, costs Rs 45,000 to 72,000. A multi-tenant PG-style house with three or four independently let floors or room clusters costs Rs 65,000 to 1.05 lakh for a fully zoned system. Houses facing Mysore Road, Magadi Road, or Chord Road need higher-spec frontage cameras, which adds Rs 8,000 to 15,000 to any of the above.

Does the metro line affect CCTV camera placement in Vijayanagar?

Vijayanagar has three Purple Line metro stations within its boundaries — Balagangadharanatha Swamiji, Vijayanagara, and Attiguppe — and the elevated viaduct running along the corridor changes both lighting and dust conditions for nearby houses. Cameras on houses close to the viaduct need their angle checked against the shifting shadow the structure casts through the day, and lens housings need a shorter cleaning interval because of the additional construction and passenger-footfall dust in the area compared to a quiet interior street.

How does CCTV work for a house with multiple PG tenants in Vijayanagar?

Vijayanagar has strong rental demand from students and IT professionals working near R.V. College, PES, and M.S. Ramaiah, and it is common for an independent house to be subdivided into three or four separately let portions rather than just one. We plan the NVR with a separate channel group per portion — each tenant's entrance and staircase on its own zone — so the landlord can view any zone when needed without every tenant's daily movement sitting on one undivided feed. This scales further than the two-zone split we use for a single owner-plus-tenant house.

What camera specification suits a house facing Mysore Road or Magadi Road?

Vijayanagar is bounded by two major arterial roads, and a house with its gate directly on Mysore Road, Magadi Road, or the Chord Road that runs through the locality sees continuous through-traffic rather than the occasional car on a quiet interior street. We specify a higher-resolution bullet camera (4MP minimum) with a dust and exhaust-resistant IP67 housing for these frontages, angled to read faces and number plates at the gate rather than the wider, softer view that suits a low-traffic residential lane.

Can an older Vijayanagar house get CCTV without major rewiring?

Yes. Limited available land in Vijayanagar means most of the housing stock is established rather than newly built, and a lot of it has not been renovated recently. For a landlord who wants coverage added without disturbing a tenanted house, we run cable along existing skirting and door frames and use a compact wall-mounted NVR cabinet rather than a recessed one, avoiding the wall-breaking that a full concealed retrofit would need. It is a faster, lower-disruption installation suited to a rented property between tenancies.

How long does CCTV footage stay stored for a multi-zone Vijayanagar rental house?

A multi-tenant house with 8 to 12 cameras across three or four zones needs more storage than a single-family setup covering the same camera count, because each zone is typically reviewed independently. We recommend a minimum 4TB hard disk for a 3 to 4 zone house, giving roughly 20 to 30 days of retention per zone at standard recording quality with motion-based recording enabled, which is enough runway for a landlord to review footage after a tenant complaint or a security concern without needing daily monitoring.

What maintenance schedule does a CCTV system near the Vijayanagar metro need?

Cameras near the Purple Line viaduct need lens cleaning every 2 to 3 months rather than the standard 6 months for interior streets, because the elevated corridor generates noticeably more dust from construction activity and passenger footfall. Bracket tightness should be checked quarterly, since minor vibration from passing trains can loosen mounts over time. HDD health monitoring, firmware updates, and connector inspections are included in the standard AMC, which runs Rs 3,000 to 5,000 per year for systems with up to 8 cameras.

Can tenants in a Vijayanagar PG house get their own camera feed?

Yes. For houses with 3 to 4 independently let portions, each tenant zone is configured as a separate NVR channel group. The landlord can set up a restricted login for each tenant that shows only that tenant's entrance and staircase, not other zones or other tenants' areas. A tenant who wants coverage inside their own portion can install a separate wireless camera on their own Wi-Fi network, completely independent of the landlord's NVR system, giving them full control over their private footage.
